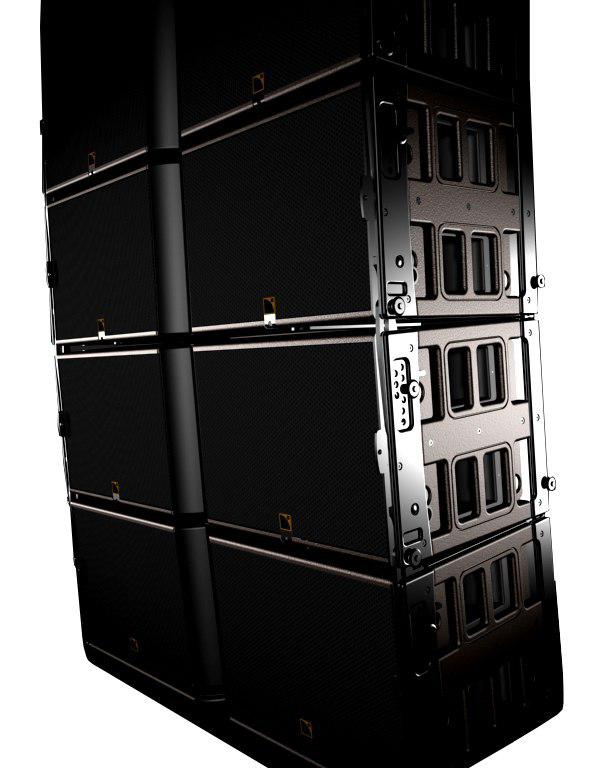

L-Acoustics K1

3-way full-range active WST enclosure, quad-amplified by LA8, usable bandwidth: (-10 dB) 35 Hz - 20 kHz. Maximum SPL : 149 dB
Rigging and handling : handles integrated in the cabinet inter-enclosure angles: 0°, 0.5°, 1°, 1.5°, 2°, 2.5°, 3°, 4° or 5°
Weight (net) - 106 kg / 234 lb


Exceptional SPL, LF and throw capability for stadium and outdoor festivals

• K transducer configuration for smooth horizontal radiation pattern
• State of the art rigging system for laser-like accuracy and quick set-up
• Dedicated LA-RAK touring system package
• New preset library for “out of the box” results and easy tunin

L-Acoustics K1-SB

Recommended subwoofer complement for the K1 or K2 line sources.
Transducer:  2 x 15", neodymium, weather-resistant, bass-reflex 4" coil, magnesium die-cast basket
Low frequency limit: (-10 dB) 30 Hz ([K1SB_60] preset)
Maximum SPL: 143 dB ([K1SB_X] preset)


Flyable high power subwoofer

• 30 Hz LF limit
• Extends K1 or K2 LF resources for special extended modes (throw and contour)
• Yields exceptional tonal balance homogeneity for long throw
• Increased K1 or K2 systems coherence reducing need for stacked subwoofers
• Progressive vents for increased SPL, laminar airflow and minimal turbulence noise
• High power handling, low distortion and thermal power compression

L-Acoustics K2

Quad-amplified, full range, 3 way active WST enclosure 2 x 12” + 4 x 6.5” + 2 x 3” DOSC HF. Bandwidth = 35 Hz - 20 kHz.

Variable curvature WST line source

• K1 system design rescaled into a 12” compact and flexible format
• V-DOSC SPL and bandwidth, with 10° inter-element flexibility
• 100% acoustic and rigging compatibility with K1 and K1-SB
• 70°/110° symmetric and 90° (L/R) asymmetric horizontal directivity
• LA-RAK (LA8) advanced system drive and protection
• Low-weight for rigging limitations and cost-effective logistics

L-Acoustics KS-28

High-Power flyable Subwoofer, (amplified by LA12X)
Low frequency limit (-10 dB): 25 Hz ([KS28_100])
Maximum SPL: 143 dB ([KS28_100])
Directivity: Standard or cardioid
Transducers: 2x18" neodymium, aluminium die cast basket
Acoustical load: Bass-reflex enclosure, L-Vents

The KS28 is a reference subwoofer designed to extend the frequency response of large format systems.
High-Power Subwoofer

• +3 dB SPL (vs. SB28)
• 79 kg / 174 lbs
• Fast and captive rigging
• Exclusively driven by LA12X
